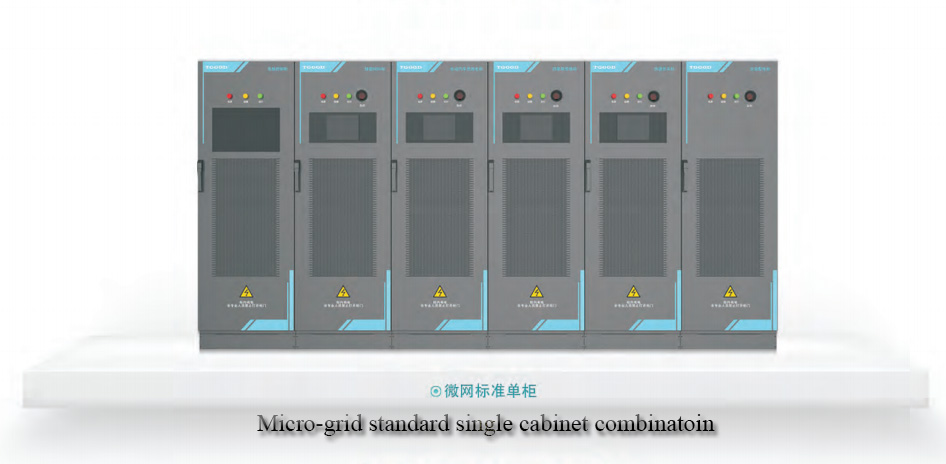

System Control Cabinet For Energy Storage System / Micro Grid System
The micro-grid system control cabinet includes software and hardware devices for micro-grid automation control and energy management functions, and realizes intelligent management and control of the micro-grid.
Features
Distributed energy management
——Realize functional settings, operational control, and status monitoring and display of distributed energy.
Power generation and utilization plan management
——Through real- time monitoring of various operating data, reasonable arrangement of the distributed power generation plan, energy storage charging and discharging plan and load electricity plan.
Web function
——Web functions such as information publishing, browsing, and downloading of micro-grid related data.
Load management
——Realize hierarchical management setting of load, switching strategy setting and operation data monitoring.
Statistical Analysis
——Resource analysis, electrical energy exchange statistics analysis, energy consumption and benefit analysis, wind and photovoltaic resource utilization analysis, power quality analysis.
Technical Parameters:
| Model | TISC250/0.4 |
| Standard configuration | |
| Server | 32G ram, 1T hard disk |
| Switch | 10 / 100 / 1000Mbps adaptive Ethernet port |
| Fiber optic transceiver | 100m optical port + 100m electric port |
| touch screen | 17.3 inch touch screen, supporting RJ45, HDMI, DVI, VGA, audio, USB interface |
| Router | 100Mbps Fast Ethernet |
| UPS | 8min@1kW |
| Central controller | CSCU1005 |
| Optional configuration | |
| Recorder | 4 TB hard disk; IPv6; 8 inputs; 1 HDMI output, 1 VGA output, 1 audio output; |
| DC / AC inverter | 450～750VDC/AC220V;3KVA/2.4kW |
| Custom configuration | |
| Management system software | Provide customized software development service for micro grid energy management system |
| Basic characteristics | | |
| External interface | | 10 Ethernet port, 2 RS485 port |
| mean time between failures | | ＞20000hour |
| Operating temperature | | -20℃ ~ +55℃ |
| relative humidity | | ≤95%RH, no condensation |
| Cooling mode | | Natural air cooling |
| Protection level | | IP20 |
| Communication mode | | Ethernet / 485 |
| Indicator light | Equipped |
| Display | | 17.3-inch LCD touch screen |
| Weight | | <300kg |
| Size (W*D*H) | | 600mm*800mm*1800mm |
All performance and parameters shall be subject to the latest confirmation of our technical department.
